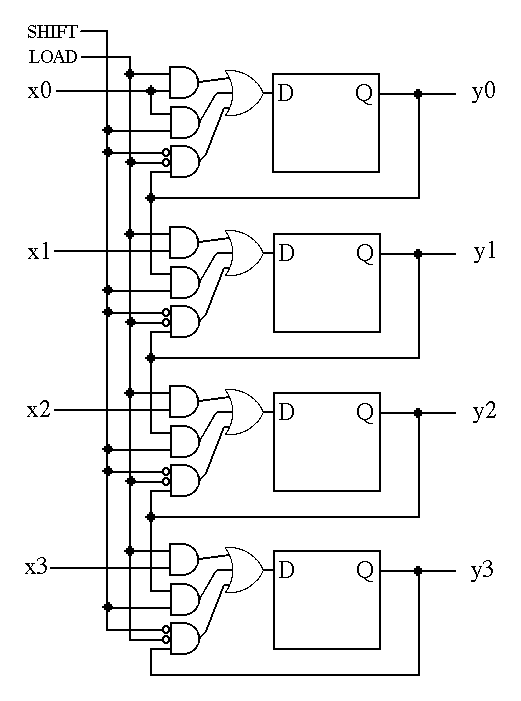

Shift register with parallel load
Each DFF is either set to
- xi (if LOAD), or
- x(i-1) (if SHIFT), or
- yi (if (not SHIFT) AND (not LOAD))
, every cycle.
So the clocks of all of the D flip-flops can be connected into the system
master clock.
In fact, we would in practice make this even more complex, by
having separate "left-shift" and "right-shift" control lines.
The above SHIFT is a left-shift.
(You are not expected to be able to reproduce the above from memory
in a test or exam
situation, although designing such a thing should not be beyond you by the
end of the course.)
