10.9 Defining a Shared Public Interface with Inheritance

In this chapter, we learned that an abstract data type can have multiple implementations, and saw this first-hand with a variety of ADTs. For example, in 10.5 Stacks we saw that the Stack ADT can be implemented using a Python list in two different ways, storing the top of the stack at the end of the list (Stack1) or the front of the list (Stack2). Though these two classes had different implementations, they shared the same public interface of the Stack ADT.

One limitation of the code we wrote for these two classes is that the only way to tell that Stack1 and Stack2 had the same interface was from their method names and docstrings. In this section, we’ll see how to create a special kind of Python class that is used to define a public interface that can be implemented by other classes, using a Python language feature known as inheritance.

The Stack abstract class

Let us begin by defining a Stack class that consists only of the public interface of the Stack ADT.

from typing import Any


class Stack:
    """A last-in-first-out (LIFO) stack of items.

    This is an abstract class. Only subclasses should be instantiated.
    """

    def is_empty(self) -> bool:
        """Return whether this stack contains no items.
        """
        raise NotImplementedError

    def push(self, item: Any) -> None:
        """Add a new element to the top of this stack.
        """
        raise NotImplementedError

    def pop(self) -> Any:
        """Remove and return the element at the top of this stack.

        Raise an EmptyStackError if this stack is empty.
        """
        raise NotImplementedError


class EmptyStackError(Exception):
    """Exception raised when calling pop on an empty stack."""

In Python, we mark a method as unimplemented by having its body raise a special exception, NotImplementedError. We say that a method is abstract when it is not implemented and raises this error; we say that a class is abstract when at least one of its methods is abstract (i.e., not implemented). A concrete class is a class that is not abstract; so far in this course, we’ve been dealing with concrete classes, and called them concrete data types. The terminology here is a bit confusing because of the multiple uses of certain terms. A concrete Python class is the same as a concrete data type. However, an abstract Python class is not the same thing as an abstract data type; the former has a technical meaning specific to the Python programming language, while the latter is the name given to an abstract description of a data type that is programming language-independent.

Now, you might wonder what the purpose of an abstract class is. Indeed, a programmer who creates a Stack object will quickly find it is useless, because calling the Stack ADT operations cause errors:

>>> s = Stack()
>>> s.push(30)
Traceback...
NotImplementedError
>>> s.pop()
Traceback...
NotImplementedError

If we can’t use the Stack object for any of the Stack ADT operations, what was the point in defining this class? The answer is very much based on abstraction, hence the name abstract class. The Stack class we have defined is a direct translation of the Stack ADT: an interface that describes the methods that a concrete class that wants to implement the Stack ADT must define. Python gives us a way to describe the relationship between an abstract class and a concrete class that implements its methods directly in the code.

Inheriting the Stack abstract class

Earlier in this chapter, we defined two new types: Stack1 and Stack2. However, despite the two types sharing the same method names, the code did not indicate that the types were related in any way. Now that we have the abstract class Stack, we can indicate this relationship in the code through inheritance:

class Stack1(Stack):
    def __init__(self) -> None:
        """Initialize a new empty stack.
        """
        self._items = []

    def is_empty(self) -> bool:
        """..."""
        return self._items == []

    def push(self, item: Any) -> None:
        """..."""
        self._items.append(item)

    def pop(self) -> Any:
        """..."""
        return self._items.pop()


class Stack2(Stack):
    def __init__(self) -> None:
        """Initialize a new empty stack.
        """
        self._items = []

    def is_empty(self) -> bool:
        """..."""
        return self._items == []

    def push(self, item: Any) -> None:
        """..."""
        self._items.insert(0, item)

    def pop(self) -> Any:
        """..."""
        return self._items.pop(0)

In the class header class Stack1(Stack) and class Stack2(Stack), the syntax (Stack) indicates that Stack1 and Stack2 inherit from Stack. There are specific words we use to talk about these relationships:

For example, we can say that “Stack is the parent class of Stack1” or “Stack2 is a subclass of Stack”.

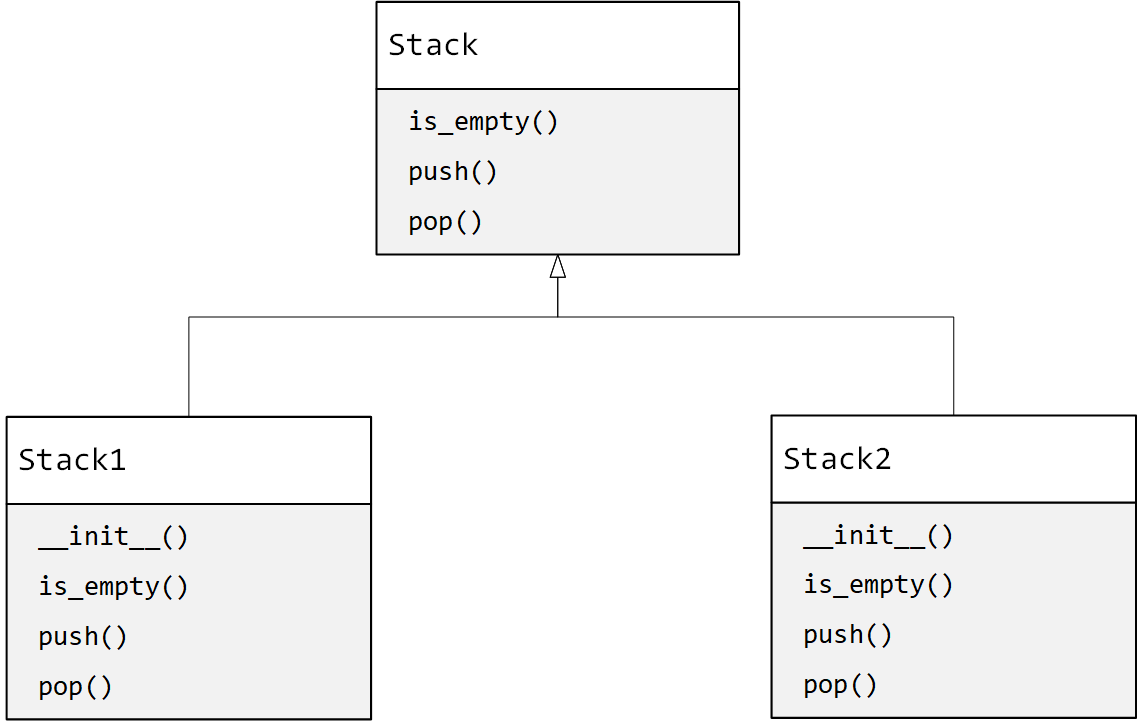

Inheritance diagram for Stack, Stack1, and Stack2.

When one class in Python inherits from another, there are two important consequences. First, the Python interpreter treats every instance of the subclass as an instance of the superclass as well.

>>> stack1 = Stack1()
>>> isinstance(stack1, Stack1)
True
>>> isinstance(stack1, Stack)
True
>>> isinstance(stack1, Stack2)
False

Second, when the superclass is abstract, the subclass must implement all abstract methods from the superclass, without changing the public interface of those methods. Just like preconditions and representation invariants, inheritance serves as another form of contract:

So for example, if we say that Stack1 is a subclass of Stack, then any user of Stack1 can expect to be able to call push, pop, and is_empty on Stack1 instances. And of course the same applies to Stack2 as well.

It is this expectation that allows us to use inheritance in Python to express a shared public interface between multiples classes. In our example, because Stack1 and Stack2 are both subclasses of Stack, we expect them implement all the stack methods. They might also implement additional methods that are unique to each subclass (not shared), but this is not required.

Writing polymorphic code using inheritance

Suppose we are writing code that operates on a stack, like in the following function:

def push_and_pop(stack: ..., item: Any) -> None:
    """Push and pop the given item onto the given stack."""
    stack.push(item)
    stack.pop()

What type annotation would be appropriate for stack? If we use a concrete stack implementation like Stack1, this would rule out other stack implementations for this function. Instead, we use the abstract class Stack as the type annotation, to indicate that our function push_and_pop can be called with any instance of any Stack subclass.

def push_and_pop(stack: Stack, item: Any) -> None:
    """Push and pop the given item onto the stack stack."""
    stack.push(item)
    stack.pop()

Remember that Stack defines a public interface that is shared between all of its subclasses: the body of push_and_pop only needs to call methods from that interface (pop and push), and doesn’t worry about how those methods are implemented. This allows us to pass to the push_and_pop function a Stack1 or Stack2 object, which both inherit from Stack.

>>> stack1 = Stack1()
>>> push_and_pop(stack1)  # This works!
>>> stack2 = Stack2()
>>> push_and_pop(stack2)  # This also works!

You might notice that there are actually three versions of push in our code: Stack.push, Stack1.push, and Stack2.push. So which method does the Python interpreter choose when the push_and_pop function is called? This is how it works for stack.push(item) (stack.pop() is handled similarly):

  1. When the Python interpreter evaluates stack.push(item), it first computes type(stack). The result will depend on the argument we passed in—in our above example, type(stack1) is Stack1, and type(stack2) is Stack2.
  2. The Python interpreter then looks in that class for a push method and calls it, passing in stack for the self argument.There are instances with inheritance where a subclass might not implement a particular method from the superclass. We’ll look at some examples of this in the next section.

We say that the Python interpreter dynamically looks up (or resolves) the stack.push/stack.pop method, because the actual method called by stack.push/stack.pop changes depending on the argument passed to push_and_pop.

We say that the push_and_pop function is polymorphic, meaning it can take as inputs values of different concrete data types and select a specific method based on the type of input. This support for polymorphism is also why the “object dot notation” style of method call is preferred to the “class dot notation” style we’ve been using up to this point. Consider the following two alternate implementations of push_and_pop:

def push_and_pop_alt1(stack: Stack, item: Any) -> None:
    """Push and pop the given item onto the stack stack."""
    Stack.push(stack, item)
    Stack.pop(stack)


def push_and_pop_alt2(stack: Stack, item: Any) -> None:
    """Push and pop the given item onto the stack stack."""
    Stack1.push(stack, item)
    Stack1.pop(stack)

The first version (alt1) explicitly calls the Stack.push and Stack.pop methods, both of which are unimplemented and would raise a NotImplementedError. The second version (alt2) calls concrete methods Stack1.push and Stack1.pop, which assumes a specific stack implementation (Stack1), and so push_and_pop would only be guaranteed to work on Stack1 instances, but not any other Stack subclass. This makes push_and_pop no longer polymorphic: the correct type annotation for s would be Stack1, not Stack.

Application: running timing experiments on stack implementation

Because both Stack1 and Stack2 are different implementations of the same interface, we can use polymorphism to help us measure the performance of each. Below, we time the push_and_pop function, first with a Stack1 object and second with a Stack2 object.

if __name__ == '__main__':
    # Import the main timing function.
    from timeit import timeit

    # The stack sizes we want to try.
    STACK_SIZES = [1000, 10000, 100000, 1000000, 10000000]
    for stack_size in STACK_SIZES:
        stack1 = Stack1()
        stack2 = Stack2()

        # Bypass the Stack interface to create a stack of size <stack_size>.
        # This speeds up the experiment, but we know this violates
        # encapsulation!
        stack1._items = list(range(0, stack_size))
        stack2._items = list(range(0, stack_size))

        # Call push_and_pop(stack1) 1000 times, and store the time taken.
        t1 = timeit('push_and_pop(stack1, 10)', number=1000, globals=globals())
        t2 = timeit('push_and_pop(stack2, 10)', number=1000, globals=globals())

        print(f'Stack size {stack_size:>8}; Stack1 time {t1}; Stack2 time {t2}')

If we have several implementations of an ADT, each inheriting from the same base class, then we can quickly run experiments on all of them but only need to remember a single interface. This creates a rule of thumb: when indicating the type of an object (e.g., through a type contract), choose the most generic type possible. Following this rule of thumb means that the client code is not constrained to one particular implementation (such as Stack1) and can readily change the underlying object so long as the new object type shares the same public interface.

Many software applications follow the same principle. For example, you may have used software with “plugins”:Like PyCharm! each plugin implements a shared public interface, allowing the software to use it without knowing any of the details. For example, Adobe develops the powerful Photoshop application for image editing. David comes along and discovers a feature he really wants is missing. Rather than asking Adobe to implement the new feature, he can implement it himself as a plugin. Thus, Adobe has allowed independent developers to extend the functionality of their software after it has been released and without any employees of their own. Behold, the power of abstraction!
